二氯乙基紫精

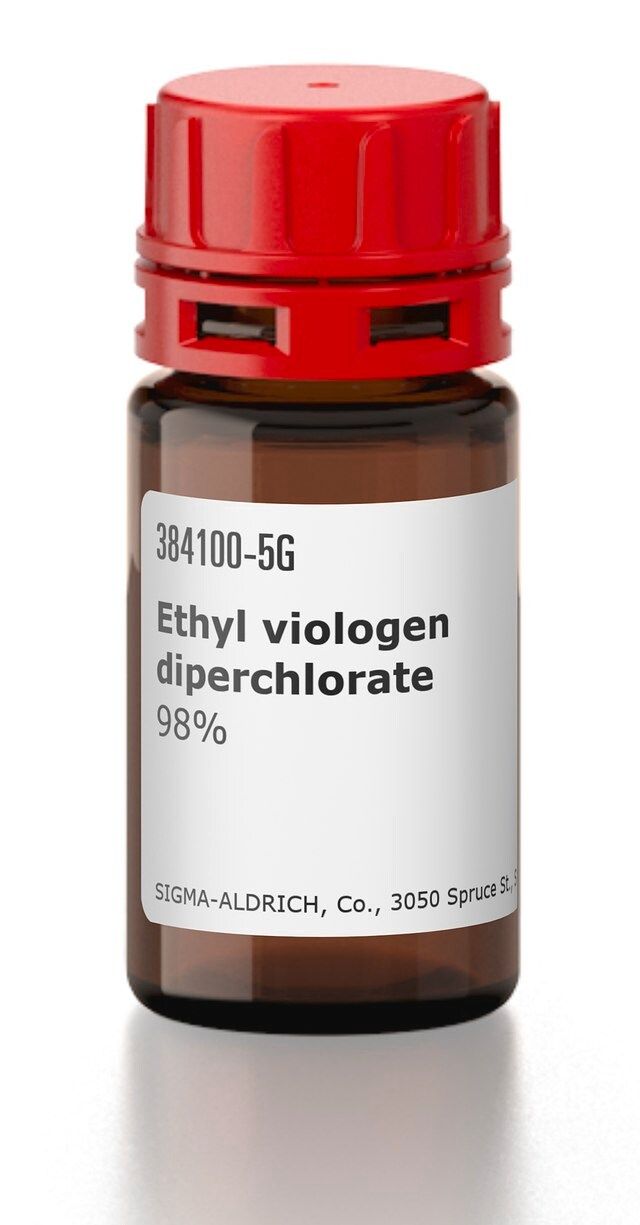

Ethyl viologen diperchlorate
产品价格查看更多规格...
产品编号 | 包装单位 | 单价(元) | 国内现货 | 国外库存 | 询价单 |
3085979 | 5 G | 1620 |
产品别名
36305-51-8
二氯乙基紫精
Ethyl viologen diperchlorate
1,1′-Diethyl-4,4′-bipyridinium diperchlorate
结构式
基本信息
Empirical Formula【经验(实验)分子式】 | C14H18Cl2N2O8 |
Molecular weight | 413.21 |
MDL number | MFCD00134591 |
PubChem Substance ID【PubChem化学物质编号】 | 24863650 |
NACRES | NA.47 |
General description【一般描述】 | Ethyl viologen diperchlorate (EV (ClO4)2) in PEO matrix may be a good option for making viologen based eletrochromic device for testing purposes as it contains EV2+, that is a good electron acceptor and perchlorate ion which serves as electrolyte. It is used for fabricating electrochromic devices. |
Application【应用】 | Ethyl viologen diperchlorate has been used in in-situ spectroscopic studies of viologen based electrochromic device. |
产品性质
Assay【测定】 | 98% |
form【形式】 | solid |
mp | 270 ℃ (dec.) (lit.) |
solubility【溶解性】 | H2O: 2.5% |
application(s) | diagnostic assay manufacturing hematology histology |
storage temp.【储存温度】 | room temp |
SMILES string | [O-]Cl(=O)(=O)=O.[O-]Cl(=O)(=O)=O.CC[n+]1ccc(cc1)-c2cc[n+](CC)cc2 |
InChI | 1S/C14H18N2.2ClHO4/c1-3-15-9-5-13(6-10-15)14-7-11-16(4-2)12-8-14;2*2-1(3,4)5/h5-12H,3-4H2,1-2H3;2*(H,2,3,4,5)/q+2;;/p-2 |
InChI key | HTNDMKDAPWJPEX-UHFFFAOYSA-L |
packaging【包装】 | 5 g in glass bottle |
安全信息
Pictograms【象形图】 | GHS07 |
Signal word【警示用语:】 | Warning |
Hazard Statements | H302 + H312 + H332 |
Precautionary Statements | P261 - P264 - P280 - P301 + P312 - P302 + P352 + P312 - P304 + P340 + P312 |
Hazard Classifications【危险分类】 | Acute Tox. 4 Dermal - Acute Tox. 4 Inhalation - Acute Tox. 4 Oral |
Storage Class Code【储存分类代码】 | 11 - Combustible Solids |
WGK | WGK 3 |
Personal Protective Equipment【个人防护装备】 | dust mask type N95 (US), Eyeshields, Gloves |
