您的位置：首页 > 产品中心 > 1392221-69-0， FK 102 Co(II) PF6 盐

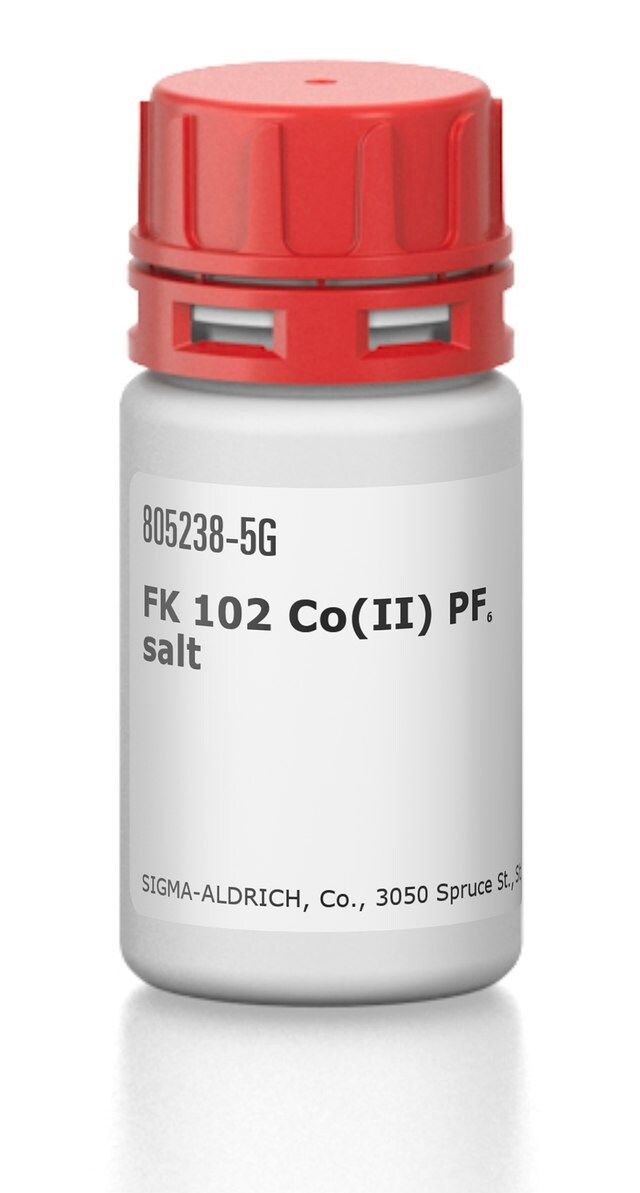

FK 102 Co(II) PF6 盐
FK 102 Co(II) PF6 salt
产品价格查看更多规格...
| 产品编号 | 包装单位 | 单价(元) | 国内现货 | 国外库存 | 询价单 |
| 3087493 | 5 G | 1170 |
产品别名
1392221-69-0
FK 102 Co(II) PF6 盐
FK 102 Co(II) PF6 salt
tris(2-(1H-pyrazol-1-yl)pyridine)cobalt(II) di[hexafluorophosphate]
Greatcell Solar
结构式
基本信息
| Empirical Formula【经验(实验)分子式】 | C24H21CoF12N9P2 |
| Molecular weight | 784.35 |
| MDL number | MFCD29037024 |
| PubChem Substance ID【PubChem化学物质编号】 | 329768922 |
| NACRES | NA.23 |
| Application【应用】 | Use this cobalt complexes to increase photovoltages of liquid electrolyte cells substantially or to achieve ultrahigh performance with solid state photovoltaic devices. FK102 cobalt complexes offer guaranteed performance, high reproducibility, consistent results, and are of highest purity. In comparison to triiodide-based redox electrolytes, cobalt complexes in general increase photovoltages and particularly at lower light levels (e.g. for indoor applications), significantly increase device power output. Recommended use: In liquid-based electrolytes: typically 0.15-0.2M of Co(II) and ca. 0.05M Co(II) In solid-state photovoltaic cells: up to 10 weight % added to the hole transport material system. |
| Legal Information【法律信息】 | Product of Greatcell Solar®. Greatcell Solar is a registered trademark of Greatcell Solar |
产品性质
| Assay【测定】 | 98% |
| Quality Level【质量水平】 | 100 |
| form【形式】 | powder |
| mp | 362 ℃ |
| SMILES string | F[P-](F)(F)(F)(F)F.F[P-](F)(F)(F)(F)F.N1(C2=NC=CC=C2)N=CC=C1.C3(N4C=CC=N4)=CC=CC=N3.C5(N6C=CC=N6)=CC=CC=N5.[Co+2] |
| InChI | 1S/3C8H7N3.Co.2F6P/c3*1-2-5-9-8(4-1)11-7-3-6-10-11;;2*1-7(2,3,4,5)6/h3*1-7H;;;/q;;;+2;2*-1 |
| InChI key | MLELXRWOHQBFBO-UHFFFAOYSA-N |
| packaging【包装】 | 5 g in poly bottle |
安全信息
| Pictograms【象形图】 | GHS07 |
| Signal word【警示用语：】 | Warning |
| Hazard Statements | H315 - H317 - H319 - H335 |
| Precautionary Statements | P280 - P302 + P352 - P305 + P351 + P338 |
| Hazard Classifications【危险分类】 | Eye Irrit. 2 - Skin Irrit. 2 - Skin Sens. 1 - STOT SE 3 |
| Target Organs【靶器官】 | Respiratory system |
| Storage Class Code【储存分类代码】 | 11 - Combustible Solids |
| WGK | WGK 3 |
