SGE 注射器阀

stainless steel body

25‑2500 μL

Cone tip

for use with removable needles

pkg of 1 ea

SGE 031905

50 mm × 0.63 mm

for use with SGE 25μL-2.5mL luer tip syringe

带有可拆卸锥尖针头的推拉阀，针头外径 0.63mm，长 5cm
Syringe valves are ideal for sample storage and transportation or to pressurize samples prior to injection. SGE offers several types of manually-operated syringe valves: push-pull for smaller volumes (2.5 μL-2.5 mL) and push-button valves (50 μL-2 L). SGE Luer Tip, Luer Lock and removable needle syringes can be fitted with valves. The valve allows fluid to be stored in the syringe without contamination.

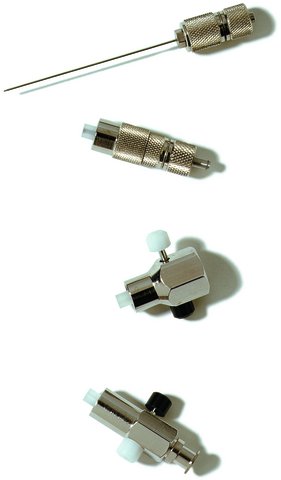

Cat. No. 509337 is a push-pull valve with removable 0.63 mm O.D. × 5 cm cone tip needle. This valve will fit removable needle syringes, 25μL-2.5mL.
Cat. No. 509345 is a push-pull with Kel-F male Luer lock termination to fit removable needle syringes, 25μL-2.5mL
Cat. No. 509353 is a push-button with Kel-F male Luer lock termination. This fits 5 mL to 2 liter syringes with removable Luer Lock or removable needle.
Cat. No. 509361 is a Luer Lock valve for any Luer Lock and Luer Tip syringe (50μl to 2 liter).
