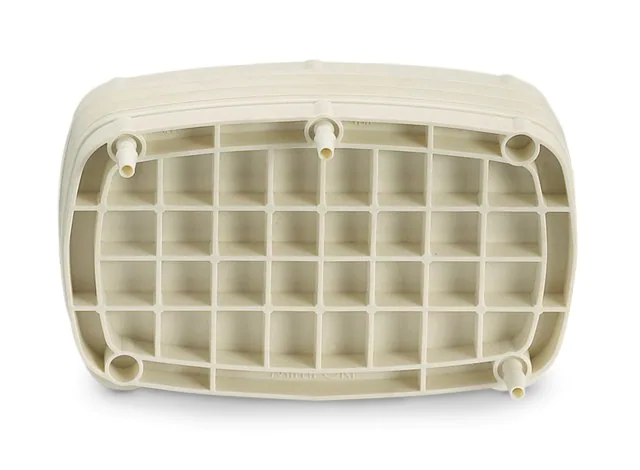

Millistak+^® HC Pod Depth Filter

32031690

NB.24

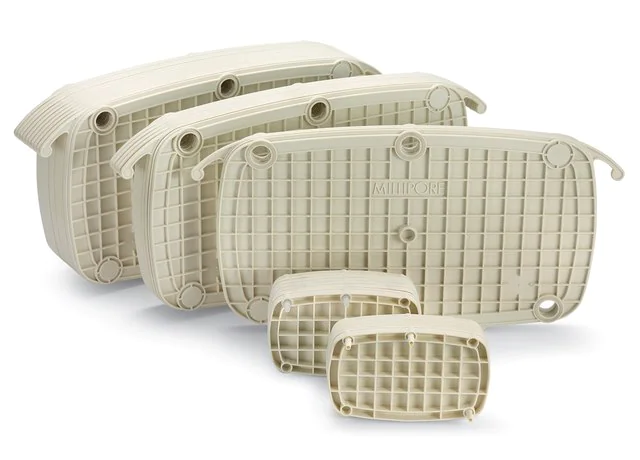

The Millistak+^® Pod system is ideal for primary and secondary clarification applications for a wide variety of processes from disease-fighting antibodies to vaccines. The proven filtration performance of Millistak+^® filter media in the popular Pod format provides greater flexibility and reduced cycle times. The Millistak+^® HC series is dedicated to improving productivity by combining two distinct media layers that enhance filter capacity and retention. Multiple filtration stages downstream of the bioreactor are compressed into one efficient step.
Device Configuration: lab scale Pod

Filter Grade: D0HC
Filter Grade: D0HC

Gravimetric Extractables: After 24 hour static soak in pure water (Type 1 DI Water) post autoclave (1 cycle of 60 minutes at 123 °C) and pure water flush of 100 L/m² of media surface area

MILLISTAK+ is a registered trademark of Merck KGaA, Darmstadt, Germany

400

cellulose
filter aid (inorganic)
glass fiber-reinforced polypropylene

Primary clarification directly out of the bioreactor

hydrophilic

Millistak+^®

1 bar max. differential pressure (15 psid) at 80 ℃ (Forward)
1 bar max. inlet pressure (15 psi) at 80 ℃
2.1 bar max. differential pressure (30 psid) at 25 ℃ (Forward)
2.1 bar max. differential pressure (30 psid) at 25 ℃ (Reverse)
3.5 bar max. inlet pressure (50 psi)

14 cm (5.3 in.)

22 cm (8.5 in.)

0.027 m²

<0.25 EU/mL (LAL test, Aqueous extraction)

39-69 mg/m²

sample type liquid

3.64 – 10.5 μS/cm (product water; post autoclave (1 cycle of 60 minutes at 123 ℃) and pure water flush of 10 liter per ft²(100 L/m²) of media surface area)

D0HC

ambient

13 - Non Combustible Solids

nwg
