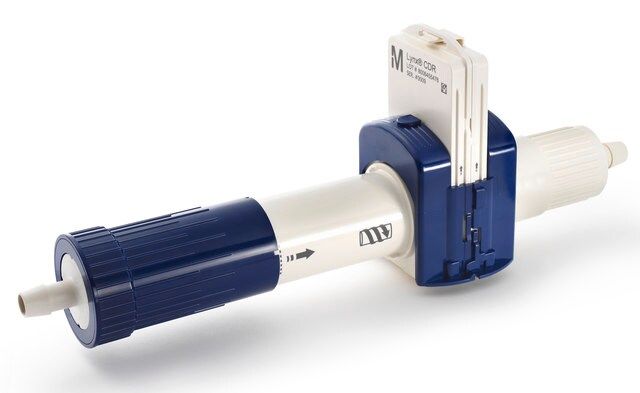

Lynx CDR母式1 1/2英寸三夹式可重新连接连接器
Lynx® CDR
产品编号: | 4061110 |
规格: | Multiple, sterile connections, disconnections and reconnections |
包装规格: | 5 EA |
产品类别: | 进口试剂 |
品牌: | Millipore |
优惠价: | 立即咨询 |
产品别名
Lynx
Lynx® CDR
Lynx CDR Female 1 1/2 Inch Tri- Clamp Reconnectable Connector
基本信息
eCl@ss | 32010310 |
Application【应用】 | Sterile connection of single-use systems Multiple, sterile connections, disconnections and reconnections |
Legal Information【法律信息】 | Emprove is a registered trademark of Merck KGaA, Darmstadt, Germany LYNX is a registered trademark of Merck KGaA, Darmstadt, Germany |
产品性质
Quality Level【质量水平】 | 400 |
material【物料】 | 316 stainless steel spring(s) (passivated) polysulfone chamber (sterility) polysulfone housing (outer) silicone seal (USP Class VI, ADCF or EMA/410/01 compliant) |
sterility【无菌性】 | non-sterile |
product line【产品线】 | EMPROVE® Single Use |
manufacturer/tradename | Lynx® |
parameter【参数】 | 2-40 ℃ temperature (36-104 °F) (liquid temperature) 4.1 bar max. differential pressure (60 psid) (bi-directional) 75 L/min flow rate at 9.6 psig (0.68 bar) |
H【高度】 | 13.7 cm (5.4 in.) |
L【长度】 | 13.5 cm (5.3 in.) |
W【宽度】 | 8.4 cm (3.3 in.) |
fitting【配件】 | 1.5 in. Tri-Clover inlet |
storage temp.【储存温度】 | 2-30℃ |
