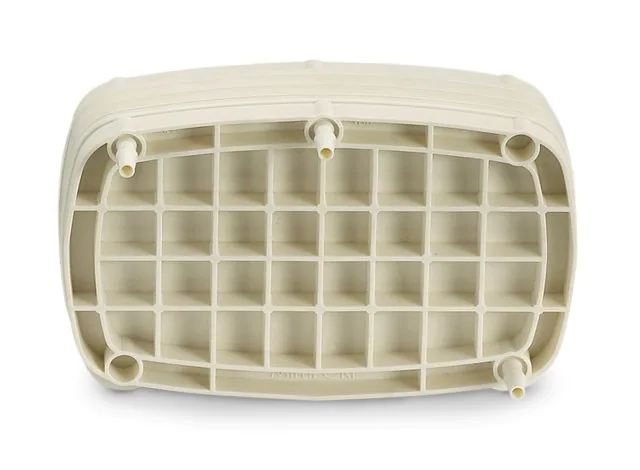

Millistak+ Pod 深层过滤器，CE50 介质系列，0.027 m² 表面积，1/4 in. 软管倒钩连接

32031690

NB.24

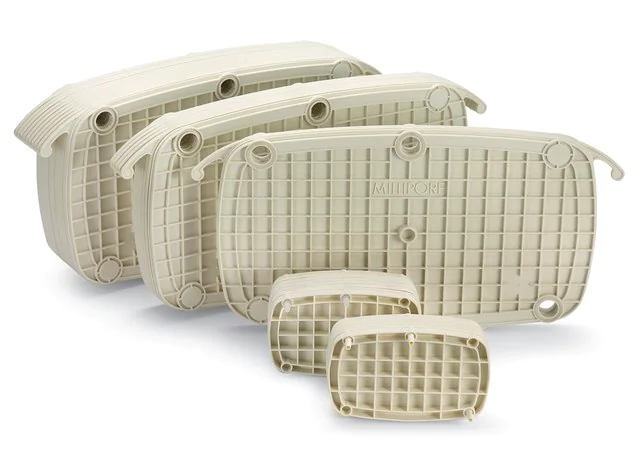

The Millistak+^® Pod system is ideal for primary and secondary clarification applications for a wide variety of processes from disease-fighting antibodies to vaccines. The proven filtration performance of Millistak+^® filter media in the popular Pod format provides greater flexibility and reduced cycle times. The Millistak+^® HC series is dedicated to improving productivity by combining two distinct media layers that enhance filter capacity and retention. Multiple filtration stages downstream of the bioreactor are compressed into one efficient step.
Device Configuration: lab scale Pod

Filter Grade: CE50
Filter Grade: CE50

MILLISTAK+ is a registered trademark of Merck KGaA, Darmstadt, Germany

400

cellulose
glass fiber-reinforced polypropylene

For clarification of serum, plasma, vaccines, cell culture or other fluids.

hydrophilic

Millistak+^®

1 bar max. differential pressure (15 psid) at 80 ℃ (Forward)
1 bar max. inlet pressure (15 psi) at 80 ℃
2.1 bar max. differential pressure (30 psid) at 25 ℃ (Forward)
2.1 bar max. differential pressure (30 psid) at 25 ℃ (Reverse)
3.5 bar max. inlet pressure (50 psi) at 25 ℃

14 cm (5.3 in.)

22 cm (8.5 in.)

0.027 m²

<0.25 EU/mL (LAL test, Aqueous extraction)

sample type liquid

1.52 – 1.94 μS/cm (product water; post autoclave (1 cycle of 60 minutes at 123 ℃) and pure water flush of 5 liters per ft²(50 L/m²) of media surface area)

CE50

ambient

10-13 - German Storage Class 10 to 13
