Carbon nanotube array, multi-walled, drawable
| 产品编号： | 4061955 |
| 规格： | vertically aligned on Si substrate |
| CAS NO： | 308068-56-6 |
| 包装规格： | 1 EA |
| 产品类别： | 进口试剂 |
| 品牌： | Sigma-Aldrich |
| 优惠价： | 立即咨询 |
产品价格查看更多规格...
| 产品编号 | 包装单位 | 单价(元) | 国内现货 | 国外库存 | 询价单 |
| 4061955 | 1 EA | 14120 |
产品别名
308068-56-6
Carbon nanotube array, multi-walled, drawable
CNT array
MWCNT
基本信息
| NACRES | NA.23 |

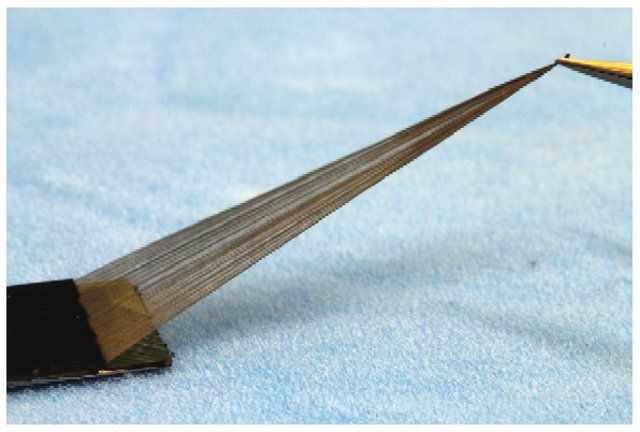

| General description【一般描述】 | Multi-walled carbon nanotubes (MWCNT) are vertically aligned on a Si substrate with a high density. Since all the MWCNTs are bundled by van der Walls force, CNT web is drawn easily by pinching an edge of the array out from the substrate. The web is very light weight and robust, and sometimes semi-transparent. Crystal quality of CNT is examined by Raman scattering measurement. Intensity ratio of G-peak (1580 cm-1) and D-peak (1350 cm-1) represents quality of graphitization of carbon materials. G/D of our CNT is ~3, showing high crystal quality. |
| Preparation Note【制备说明】 | Chemical Vapor Deposition (CVD) method. |
产品性质
| description【描述】 | Form: 10 mmx20 mm Si substrate |
| Quality Level【质量水平】 | 100 |
| Assay【测定】 | 98% (carbon as CNT) |
| diam. × L【直径× 长度】 | 10-40 nm × 1.0 mm ± 0.5 mm |
安全信息
| Storage Class Code【储存分类代码】 | 11 - Combustible Solids |
| WGK | WGK 3 |
