Diffusion mixer chip

Microfludic chip x1

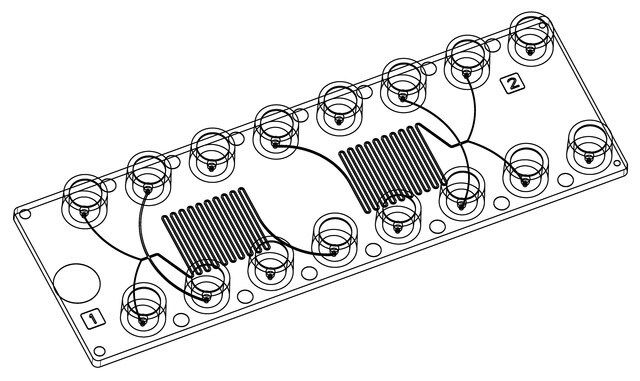

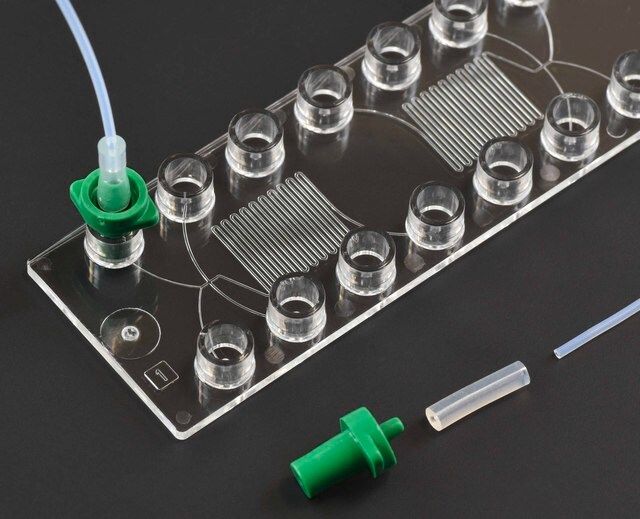

The Diffusion Mixer Fluidic 186 COP microfluidic chip applies passive mixing principles and elongated channels to enforce mixing. Though flows in microchannels are normally laminar, this mixer improves diffusion through a long co-flow of liquids in an elongated meandering channel.

Chip Properties:

• Luer Interface
• Material: Cyclic Olefin Polymer (COP)
• Channel Depth: 100 μm

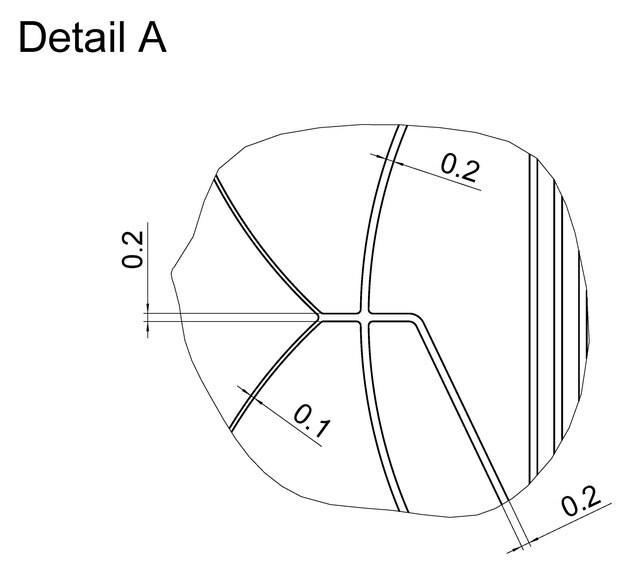

• Channel Width Inlets: 100/200 μm
• Channel Width Mixer: 200 μm
• Channel Width Outlet: 200 μm
• Volume Mixing Channel: 4.11 μL

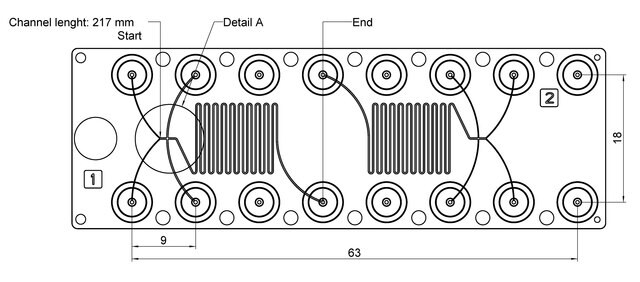

• Length of mixing channel: 217 mm
