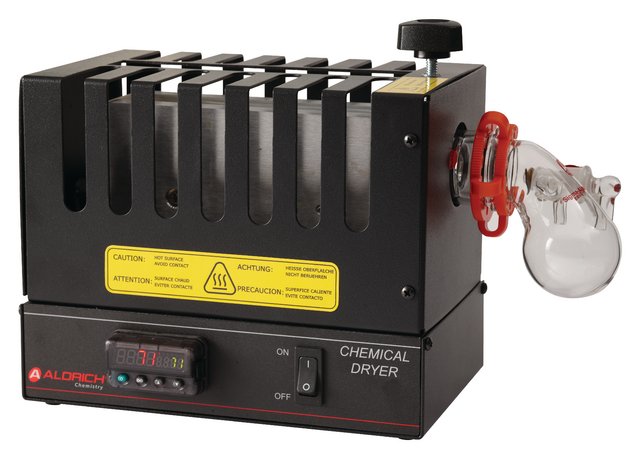

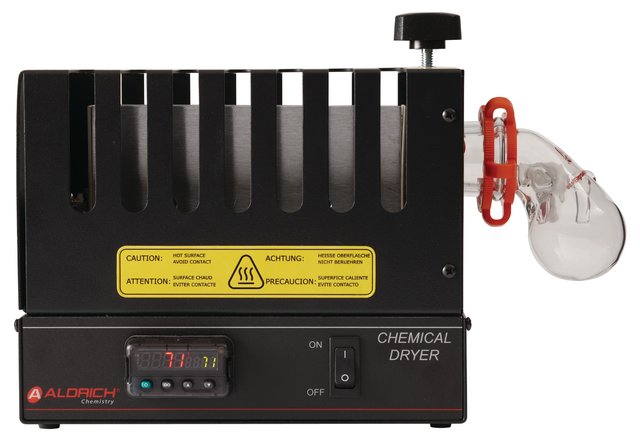

Aldrich^® chemical dryer

NB.43

"Dries samples using heat, vacuum, and desiccant"

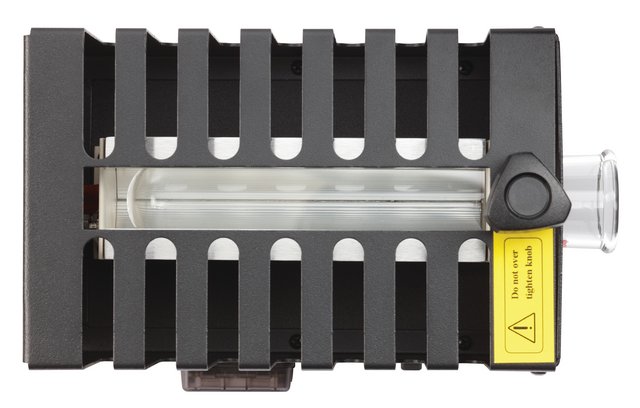

Precise digital control simultaneously displays both "set" and "actual" temperatures from ambient to 230℃. A built-in thermocouple automatically maintains selected temperature. The oven features a precision machined aluminum heating block with a borosilicate glass sample-viewing port and an integrated safety guard to prevent touching hot parts. The glass drying tube is protected within the enclosed heating block and is safely contained in the event of accidental breakage. The Modular design permits the removal and storage of dried samples in sealed drying tubes. This enables rapid sample processing in succession for servicing multiple users. Order glass drying tube assembly Z222712 separately.

Specifications:
Accuracy

• Temperature range: ambient to 230℃
• Calibration accuracy: 0.1% of span
• Temperature stability: 0.2°F/℃ rise in ambient maximum
• Voltage stability: 0.01% of span/% of rated line voltage

Power

• 50/60 Hz 5%
• Data retention upon power failure via non volatile memory
• Detachable power cord
• CE compliant

Operating Environment

• 32 to 149°F/0 to 65℃; 0 to 90% RH, non-condensing

Aldrich is a registered trademark of sigma-aldrich Co. LLC
