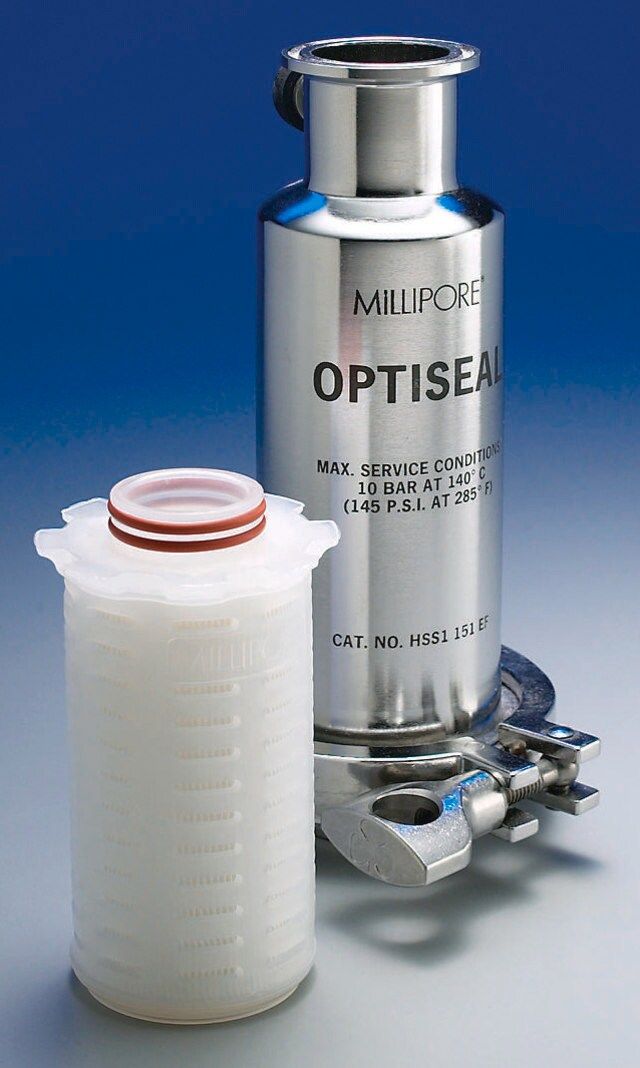

Optiseal Sanitary Cartridge Housing In-line
基本信息
| eCl@ss | 32031603 |
| General description【一般描述】 | Device Configuration: In-line |
| Application【应用】 | Small-volume applications |
| Features and Benefits【特点和优势】 | Surface Finish, Wetted: Fine electropolished sanitary finish, Ra <0.5 µm (20 µin) Surface Finish, Exterior: Sanitary finish Ra <0.8 µm (32 µin) |
| Other Notes【其他说明】 | Type of mounting used for filter housing: Can be supported by braced rigid tubing connections |
| Legal Information【法律信息】 | OPTISEAL is a registered trademark of Merck KGaA, Darmstadt, Germany |
产品性质
| Quality Level【质量水平】 | 100 |
| material【物料】 | 316L stainless steel silicone seal |
| manufacturer/tradename | OptiSeal® |
| availability | available only in North America |
| parameter【参数】 | 10 bar max. inlet pressure (145 psi) |
| H【高度】 | 20.3 cm (8 in.) |
| L【长度】 | 20.2 cm |
| inlet to outlet W | 20.3 cm (8 in.) |
| weight【重量】 | 1.25 kg (2.75 lb) |
| fitting【配件】 | 3 in. base-dome connection O-ring (2-335) 1.5 in. inlet/outlet sanitary flange |
| cartridge code | double O-rings (2-123; hold-down tabs) |
| compatibility【相容性】 | for use with Optiseal Cartridge Filter |
