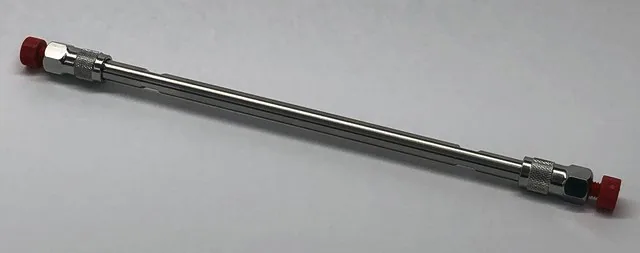

BIOshell^TM IgG 1000 Å Diphenyl, 2.7 μm HPLC Column

stainless steel column

suitable for USP L11

BIOshell^™

endcapped

1 ea of

1.0% loading

HPLC: suitable
LC/MS: suitable
UHPLC-MS: suitable
UHPLC: suitable

15 cm × 2.1 mm

Fused-Core^® particle platform
superficially porous particle

bonding phase, Diphenyl (diphenylmethyl)

2.7 μm

1000 Å pore size

22 m²/g

2 - 9

reversed phase

BIOshell^™ IgG 1000 Å Diphenyl is a high-speed, high-performance liquid chromatography column based on a new wide-pore (1000 Å) Fused-Core^® particle design. The particle provides a thin porous shell of high-purity silica surrounding a solid silica core. This particle design exhibits very high column efficiency due to the shallow diffusion paths in the 0.5 μm thin porous shell and the small overall particle size of 2.7 μm. The densely bonded, extensively endcapped diphenylmethyl bonded phase of BIOshell^™ IgG 1000 Å Diphenyl provides a stable, reversed-phase packing that can be used for separating high molecular weight compounds, such as proteins.

UHPLC Analysis of Reduced IgG1 on BIOshell^™ IgG 1000 Å Diphenyl
UHPLC Analysis of IgG2 on BIOshell^™ IgG 1000 Å C4, C18, and Diphenyl, 2.7 μm

Target analytes include: monoclonal antibodies, antibody-drug conjugates, antibody fragments and large proteins with molecular weights up to 500 kDa.

BIOshell is a trademark of sigma-aldrich Co. LLC
Fused-Core is a registered trademark of Advanced Materials Technology, Inc.

13 - Non Combustible Solids

WGK 2
