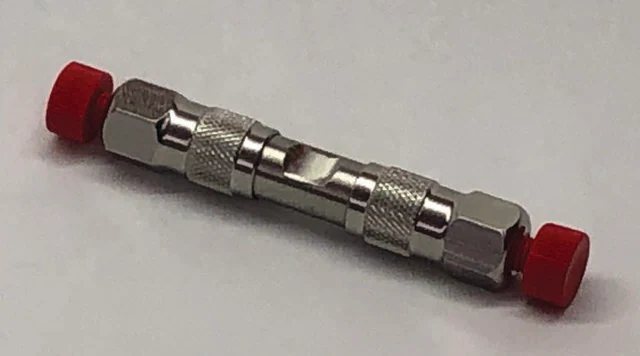

Ascentis^® Express ES-Cyano, 2 μm UHPLC Column

SB.52

Ascentis^® Express 2μm ES-Cyano UHPLC columns are based on a 90 Å Fused-Core^® particles. The Fused-Core particle provides a thin porous shell of high-purity silica surrounding a solid silica core. This particle design exhibits very high column efficiency due to the shallow diffusion paths in the 0.4-micron thick porous shell and the small overall particle size of 2-microns. The sterically protected, extensively endcapped diisopropyl-cyanopropylsilane stationary phase of Ascentis Express 2μm ES-Cyano provides a stable, reversed-phase packing that can be used for basic, acidic, or neutral compounds.

Ascentis is a registered trademark of sigma-aldrich Co. LLC
Fused-Core is a registered trademark of Advanced Materials Technology, Inc.

stainless steel column

100

suitable for USP L10

Ascentis^®

endcapped

Ascentis^®

1 ea of

1000 bar max. pressure (14500 psi)
80 ℃ temp. range

LC/MS: suitable
UHPLC-MS: suitable
UHPLC: suitable

3 cm × 3 mm

<5 ppm (metals)

Fused-Core particle platform
superficially porous particle

phase, diisopropyl-cyanopropylsilane

2 μm

90 Å pore size

120 m²/g

1 - 8

food and beverages

hydrophilic interaction (HILIC)
normal phase
reversed phase
