Steritest^® NEO Device

32014001

NB.24

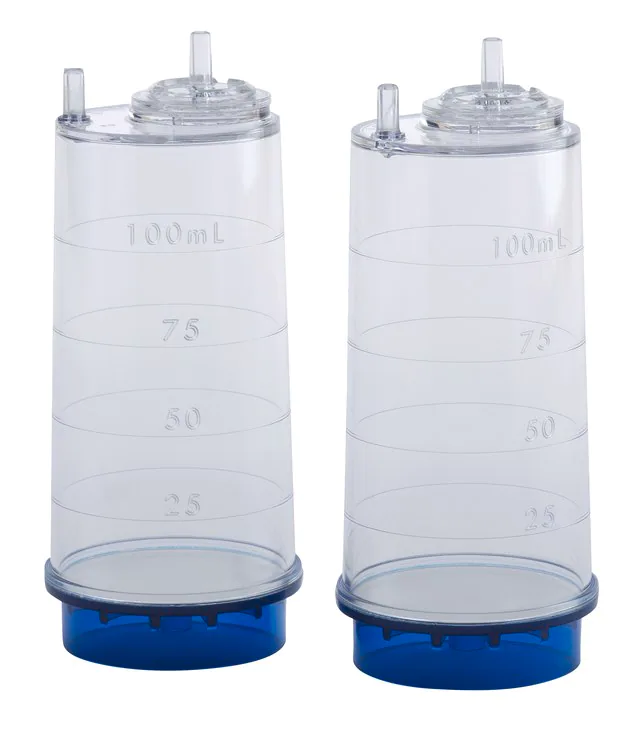

Device Configuration: 2 canisters

Steritest^® NEO is a membrane filtration device for sterility testing of filterable pharmaceutical products. The device simplifies every aspect of testing, from handling to traceability. The closed system minimizes false positives and offers the highest levels of quality and reliability. This device ensures that pharmaceutical products are never exposed to the environment during the testing process. This test system offers an optimized and fully regulatory compliant testing process when used with the Steritest^® Symbio pump, specific accessories and high-quality culture media and rinsing fluids. The non-coring needle adapter with aperture on side of needle adapter minimizes the blockage. A separate vent needle is included for the transfer of the test product, culture media or rinsing buffer. The canisters with blue base indicate mixed cellulose ester (MCE) membrane, which provides an optimal filtration flow rate for standard products.

The Steritest^® NEO Device is used for sterility testing of liquids in plastic containers, without antimicrobial agents.

MF-Millipore is a registered trademark of Merck KGaA, Darmstadt, Germany
STERITEST is a registered trademark of Merck KGaA, Darmstadt, Germany

400

Nylon 66 adapter (for needle)
PVC tubing (double lumen)
mixed cellulose esters (MCE) membrane
plain filter
stainless steel (for needle)
styrene-acrylonitrile (SAN) (for canister)

EP (2.6.1)
JP (4.06)
USP 71

sterile; γ-irradiated

Steritest^®

pkg of 10 blisters per box, Single packed

3.1 bar max. inlet pressure (45 psi) at 25 ℃
45 ℃ max. temp.

850 mm

blue Canister Base

MF-Millipore^®

0.45 μm pore size

liquid
sample type pharmaceutical(s)

sample volume: 120 mL (graduation marks at 25, 50, 75 and 100 mL)

pharmaceutical
sterility testing

ambient

11 - Combustible Solids

WGK 2
