TLC Silica gel 60
| 产品编号： | 4152502 |
| 规格： | pkg of 100 plates, plate L × W 5 cm × 20 cm, glass support |
| 包装规格： | 100 UNITS |
| 产品类别： | 进口试剂 |
| 品牌： | Supelco |
| 优惠价： | 立即咨询 |
产品性质
| material【物料】 | glass support silica gel 60 matrix |
| Quality Level【质量水平】 | 100 |
| feature【特点】 | binder Organic Polymer fluorescent indicator: no |
| packaging【包装】 | pkg of 100 plates |
| technique(s) | thin layer chromatography (TLC): suitable |
| layer thickness【层厚度】 | 250 μm |
| plate L × W【板长度 × 宽度】 | 5 cm × 20 cm |
| Particle size【粒径】 | 10-12 μm |
| pore size【孔径】 | 60 Å medium pore diameter |
| storage temp.【储存温度】 | 2-30℃ |
基本信息

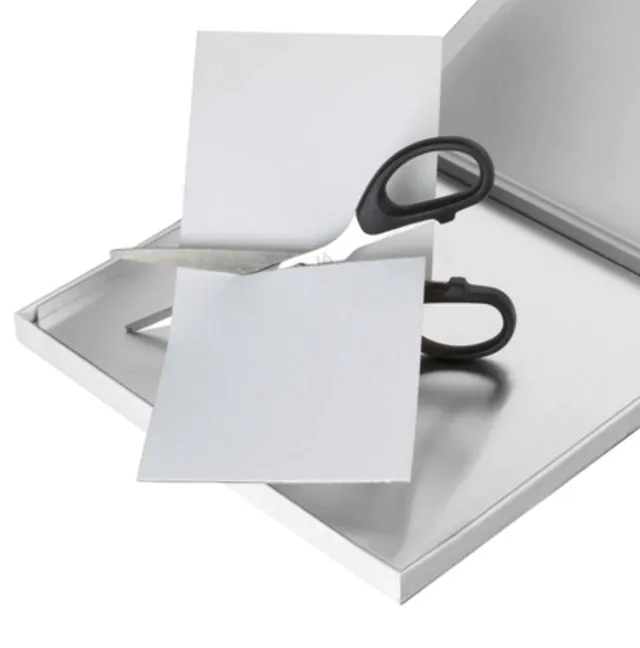

| General description【一般描述】 | 100 Glass plates 5 x 20 cm Our classical silica TLC plates are based on a combination of our proven silica gel 60 and the addition of a unique polymeric binder resulting in a very adherent and hard surface that will not crack or blister and even allow writing with a pensil on the surface without risk to damage the layer. |
| Linkage【联系】 | Replaces: 5724-3; 5724 |
| Analysis Note【分析说明】 | Specific surface area (according to BET; 5-Pt. measurement): 480 - 540 m²/g Pore volume (N₂-isotherm): 0.74 - 0.84 ml/g d 50 (laser diffraction, size distribution): 9.5 - 11.5 µm Layer thickness: 210 - 270 µm Deviation of layer thickness per plate: ≤ 35 µm Chromatographic testing: colour test hRf-values - bleu vif organol, colour test, lipophile: 11 - 25 - Ceres Black G, colour test, lipophile: 34 - 48 - ceres Violet brn, colour test, lipophile: 52 - 67 separation number (colourtest, lipophile): ≥ 10.5 Typical value determined on a conditioned plate Eluent: toluene (45% rel. humidity) |
安全信息
| Storage Class Code【储存分类代码】 | 10-13 - German Storage Class 10 to 13 |
